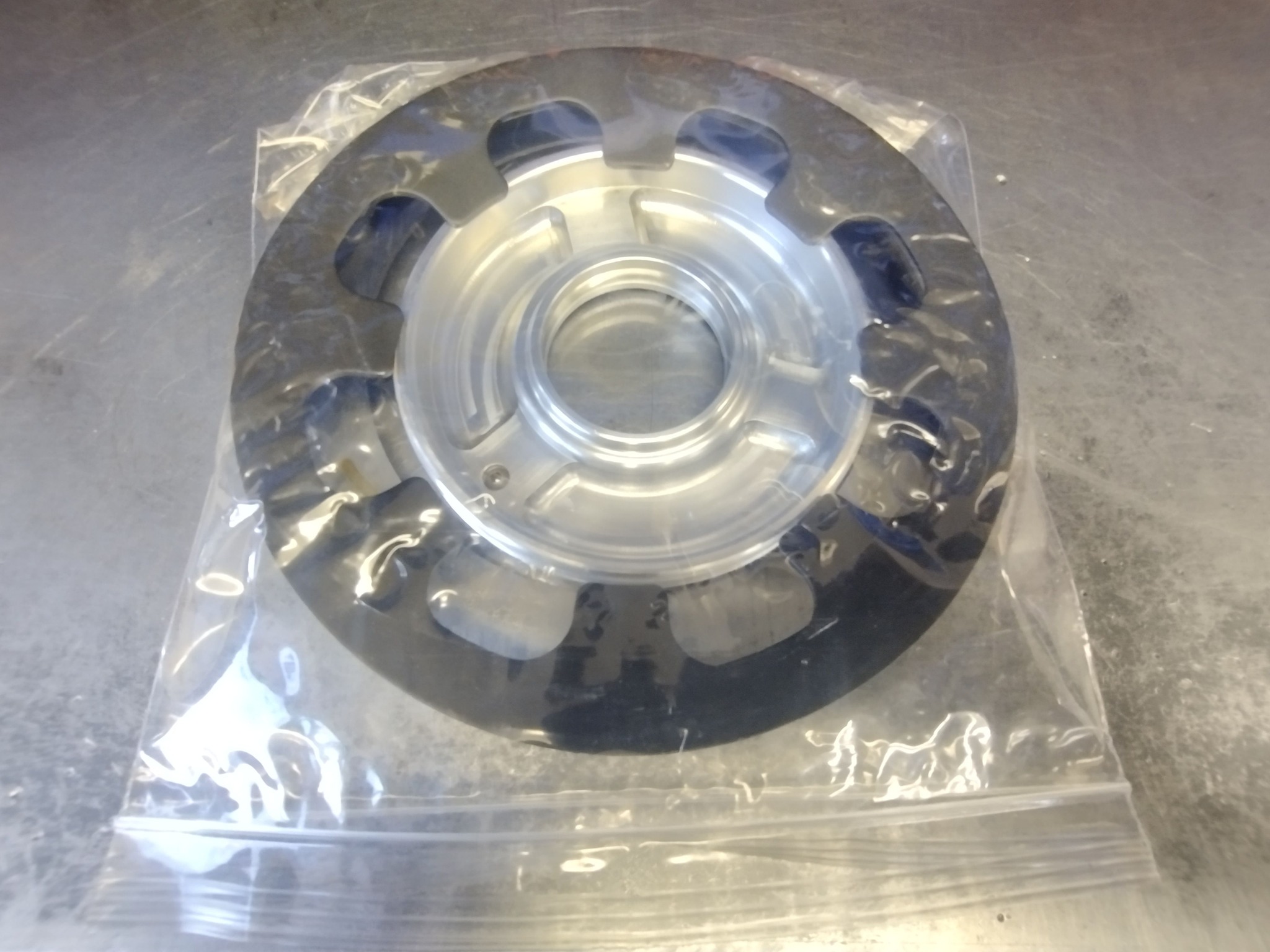

727 46 47 48RE HEAVY DUTY BELLEVILLE SPRING & .780 BILLET PISTON KIT

Product Description

727 46 47 48RE HEAVY DUTY BELLEVILLE SPRING & BILLET .780 PISTON KIT

THIS KIT INCLUDES:

1 NEW HD BELLEVILLE SPRING
1 STEEL SPACER
1 .060″ FLAT SNAP RING
1 .059″ KOLENE STEEL PLATE

1 .780 BILLET FORWARD PISTON

THIS HD BELLEVILLE SPRING KIT IS DESIGNED TO BE USED WITH THE APPLY PISTON THAT MEASURES .780″

REMOVER THE ORIGINAL BELLEVILLE SPRING AND PLASITC SPACER. INSTALL NEW BELLEVILLE SPRING AND
STEEL SPACER, REUSE YOUR ORIGINAL WAVE SNAP RING.
INSTALL YOUR PRESSURE PLATE, CLUTCHES & STEEL, TOP PRESSURE PLATE, USE THE SUPPLIED .060″
FLAT SNAP RING AND CHECK YOUR CLEARANCE. (.020 – -036)
IF YOUR CLEARANCE IS TOO TIGHT, USED SUPPLIED .059″ KOLENE STEEL PLATE.
IF YOUR CLEARANCE IS TOO LOOSE USE A .075 SNAP RING (NOT SUPPLIED)
